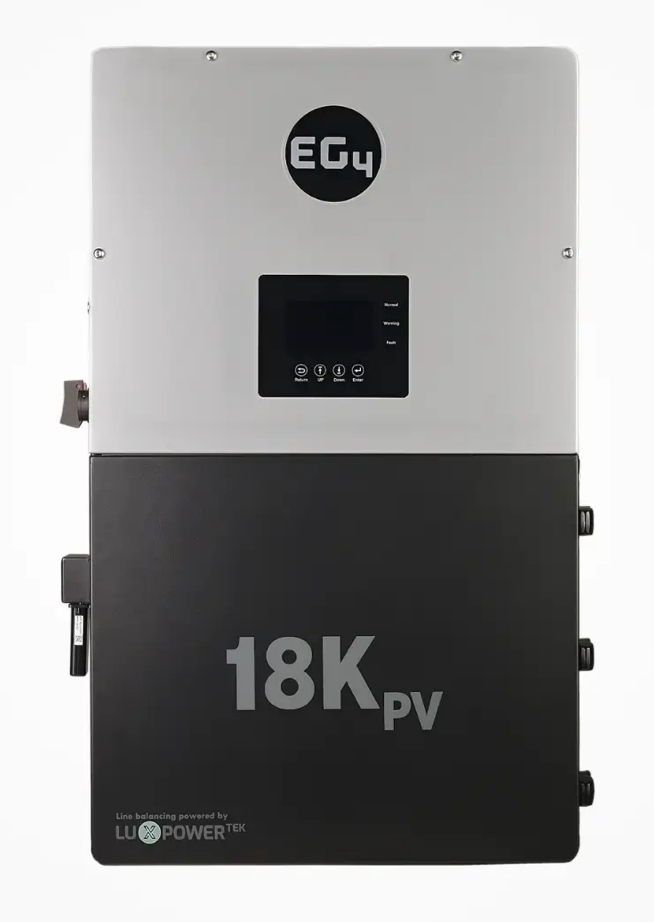

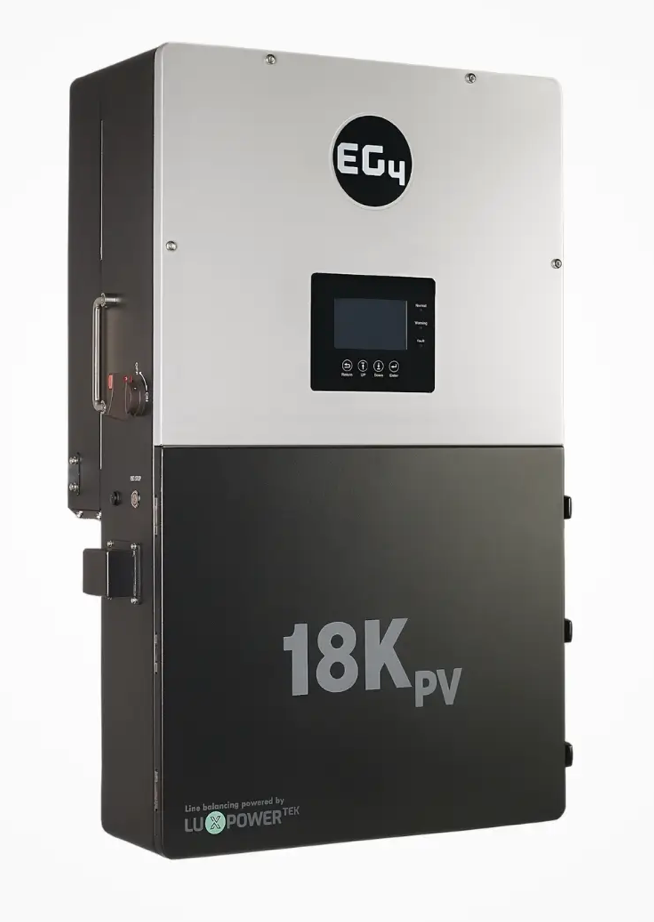

EG4 - 18KPV-12LV ALL-in-one Hybrid Inverter
EG4 - 18KPV-12LV All-in-one Hybrid Inverter
SKU: EG4INV18KPV00V2
UL 1741 SB | NEMA 4X | CEC | CSIP
The EG4 18kPV hybrid inverter/charger is a robust solution for solar users seeking flexibility and efficiency. EMP-hardened to withstand natural or manmade disruptions, it supports off-grid, grid-assist, and grid-tied modes, allowing for energy independence, backup from the grid, or selling excess energy.
With 18kW PV input and 12kW output, the inverter offers high energy handling and can parallel up to 10 units for expanded capacity. A 600V DC input and three MPPTs ensure optimal energy conversion and streamlined cable management. The 18kPV provides split-phase 120/240V or 120/208V output and integrates seamlessly with 48V EG4 or other battery brands. Built-in Wi-Fi enables remote monitoring via the EG4 app, making it ideal for homes and businesses focused on solar savings and energy independence.
All-In-One Hybrid Inverter:
Capable of running entirely off the grid, using grid electricity, or selling power back to the grid
Dual Functionality:
Utilize both grid-tie and off-grid modes simultaneously
High Frequency, Split-Phase Output:
Allows for 120/240V single unit or 120/208 service operation.
Remote Monitoring:
Track performance via EG4’s mobile app or website
Easy Control:
User-friendly, configurable LCD display
AC Output: 12kW continuous
PV Input: 18kW PV
Number of MPPTs: 3 (600VDC max input each)
Parallel: Up to 10 units for a combined 120kW output
DC Input Voltage Range: 100–600 VDC
Dimensions: 34.3×20.5×11.2 in. (87×52×28.5 cm)
Weight: 121.25 lbs (55kg)
Warranty: 10 year
