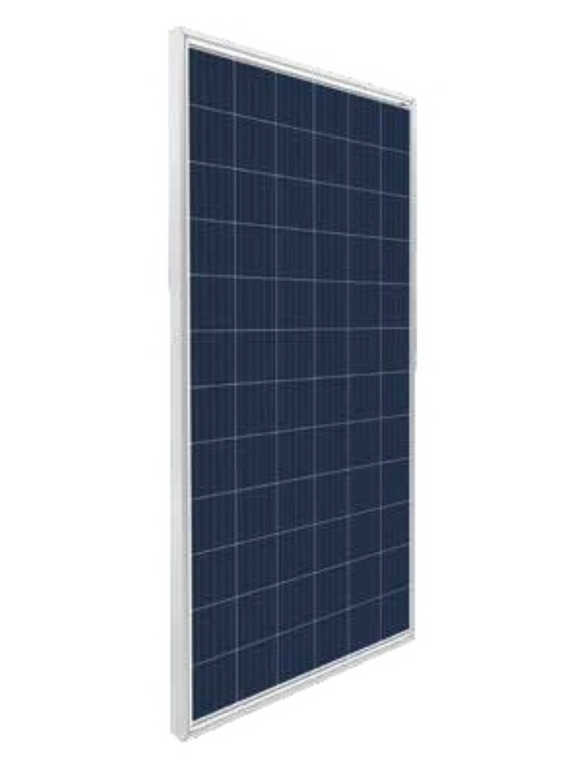

RenewSys - Deserv3M6-335W, 335W polycrystalline 72 cells
RenewSys - Deserv3M6-335W, 335W polycrystalline 72 cells
*Available to ship from, or pick-up in Montreal ONLY*
*Minimum ship quantity 2x*
*skid price: $4854.50 (29 x panels) Contact Us *
spec sheet: Data Sheet (EN)
| Type | Polycrystalline 72 cells |
| Nominal Power [W] | 335 |
| Nominal Voltage [V] | 24 |
| Short Circuit Current (Isc) [A] | 9.31 |
| Open Circuit Voltage (Voc) | 46.24 |
| Optimal Current (Imp) [A] | 8.79 |
| Optimal Voltage (Vmp) | 37.67 |
| Temperature Coefficient Pmax | -0.40 |
| Temperature Coefficient Voc | -0.30 |
| Maximum Fuse Rating | 15 |
| Maximum Voltage [VCC] | 1000 |
| Cable Lenghts [cm] | 120 |
| Height [cm] | 195.8 |
| Width [cm] | 98.7 |
| Thickness [cm] | 3.5 |
| Weight [kg] | 21.2 |
| Certifications | IEC certifié: 61215, 61730, ISO 9001: 2015 |
