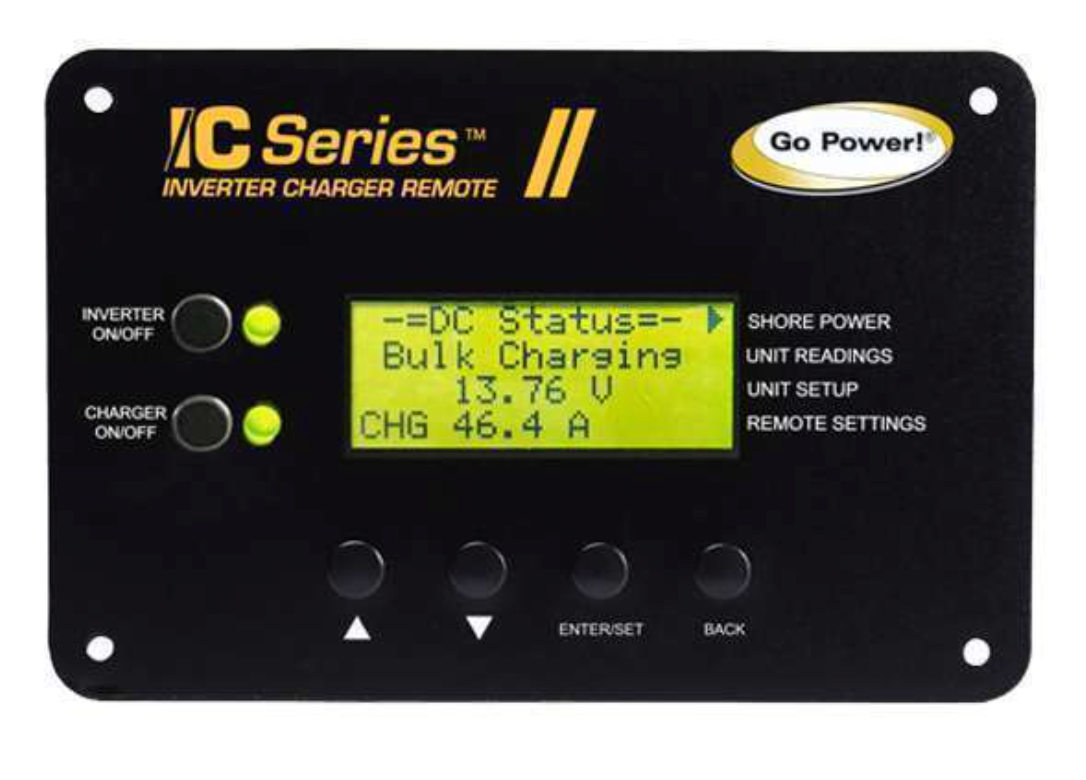

Go Power - IC SERIES 2000W inverter/ charger and remote
Go Power - IC SERIES 2000W inverter/ charger and remote
SKU: IC-2000-12-pkg
Go Power!'s IC Series 2000-watt Inverter Charger is an inverter, battery charger and transfer switch in one compact unit. The inverter charger is a 3-in-1 system combining an inverter, battery charger and automatic transfer switch. This saves space and simplifies installation by reducing the number of devices and cables to install.
While most inverter chargers offer a 30 amp transfer switch, the IC2000 provides two 50 amp legs. That means when connected to shore power 50 amp service (240V), you can draw up to 12,000 watts of power! The IC2000 is also compatible with 30 amp service.
The IC2000 Includes a battery temperature sensor on a 25' cable. One end mounts onto your battery and the other end plugs into the inverter charger. The temperature data is sent to the IC2000 which automatically adjusts voltage to maintain proper and healthy charging.
Applications
Product Overview
Model: GP-IC-2000-12
A 3-in-1 system combining an inverter, battery charger and automatic transfer switch, which saves space and simplifies installation.Features
- 2000 watt pure sine wave inverter; 3400 watt surge (5 seconds)
- High inverter efficiency - 90%
- 100 amp battery converter/charger
- 100 amp automatic transfer switch (50 amps per leg at 120V AC)
- Built-in handles offers easier handling during installation
- Power factor corrected
- Industry standard protection features
- Meets UL 1741 and UL 458 with marine supplement
- 3 year warranty
Inverter specs:
Output Power (up to 40ºC) |
2000W |
|
Surge Power (100 milliseconds) |
4000W |
|
Surge Power (5 seconds) |
3400W |
|
Peak Output Current |
35A |
|
Continuous Output Current |
17A |
|
Output Voltage |
115 VAC |
|
Output Frequency |
60 Hz ±0.1Hz |
|
Output Waveform |
Pure Sine Wave |
|
Efficiency (Peak) |
90% |
|
DC Input Voltage Range |
9 – 17 VDC |
|
Maximum Continuous DC Input Current |
283 ADC |
|
No Load Power Consumption |
Normal Mode:25W, Sleep Mode: 5W |
|
AC Connections |
Split Phase In/Dual Out, Dual In/ Dual Out |
Charger specs:
Input Voltage Nominal |
120 VAC |
|
Input Voltage Range |
80 – 140VAC |
|
Input Current |
15A |
|
Input Power Factor Correction |
0.97 typical |
|
Optimal Efficiency |
> 85% |
|
Charge Control |
3 stage with manual equalize |
|
Output Voltage |
5 – 16VDC |
|
Output Current |
100 ADC |
|
Change Temperature Compensation |
Remote Battery Sensor |
